Build an FM radio using Arduino Nano and a TEA5767 Radio Module

By: (plus.google.com) +David Herron; Date: September 2, 2017

Tags: Arduino

With a few add-on parts, you can create your own customized FM radio receiver. The attached project uses an Arduino NANO and a TES5767 radio module that can be used either with Raspberry Pi or Arduino. The display is a Nokia 5110 LCD display, but you could use any display of your choosing. The TES5767 uses an I2C interface, making it easy to integrate, and making an I2C display unit a good addition.

Source code: (educ8s.tv) http://educ8s.tv/arduino-fm-radio-project

Parts for building the Arduino FM Radio

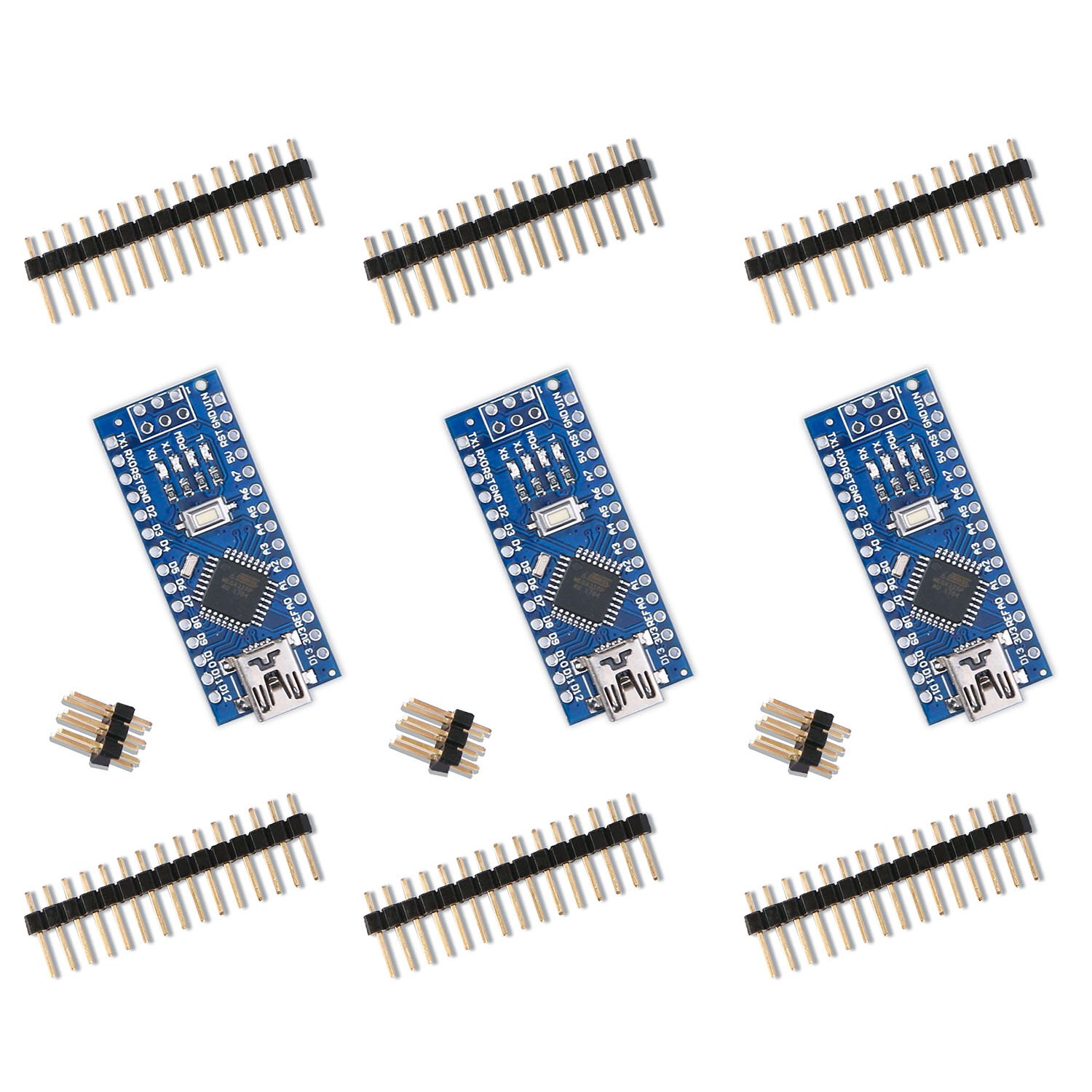

Arduino Nano V3.0

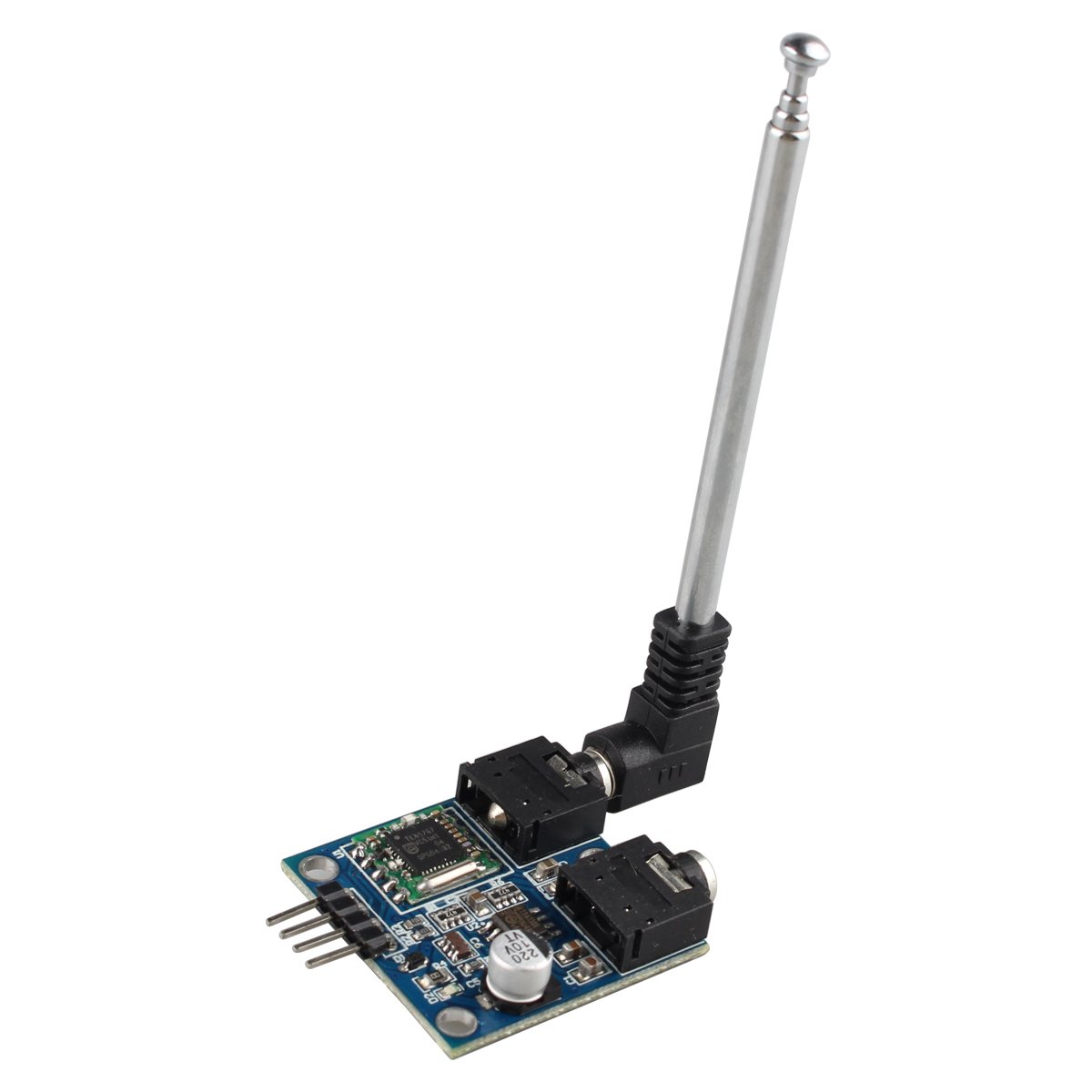

TEA5767 FM Stereo Radio Module for Arduino Raspberry Pi DIY

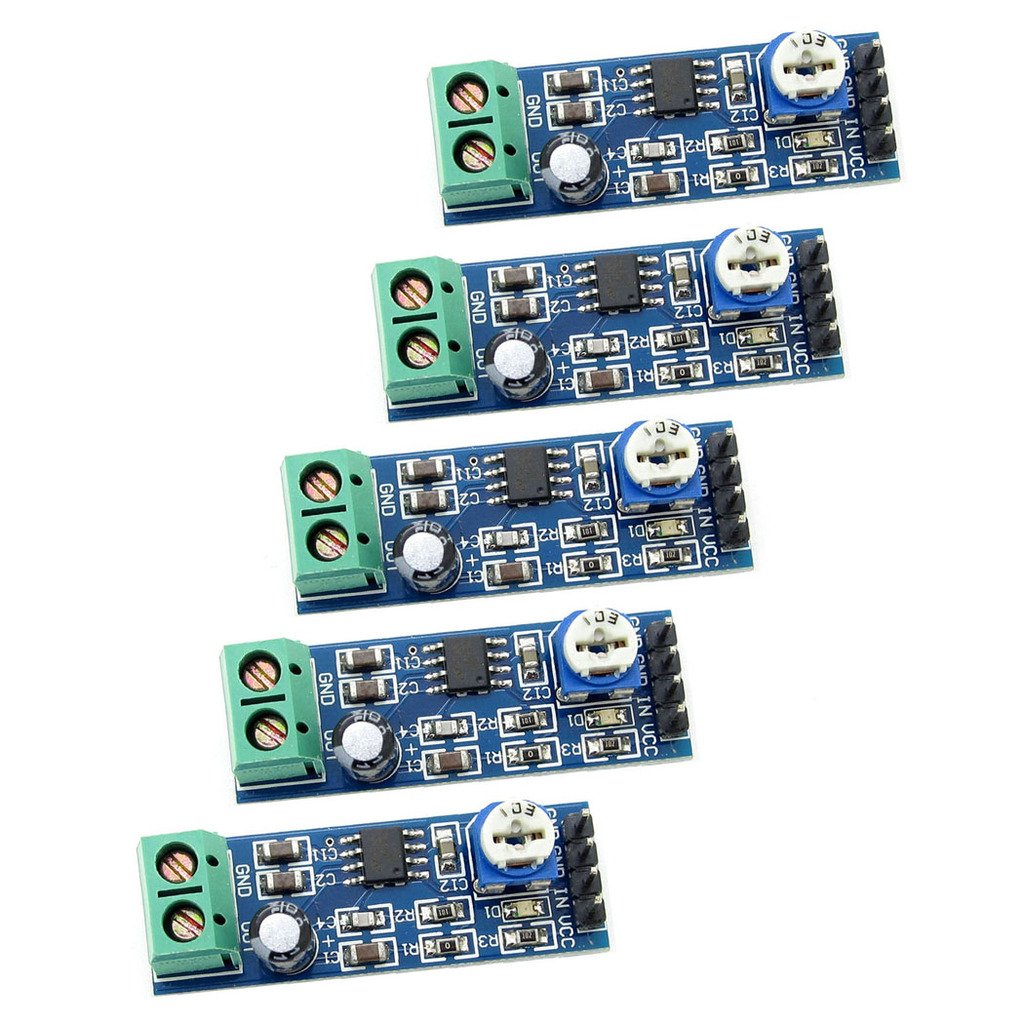

LM386 Audio Amplifier Module for Arduino EK1236

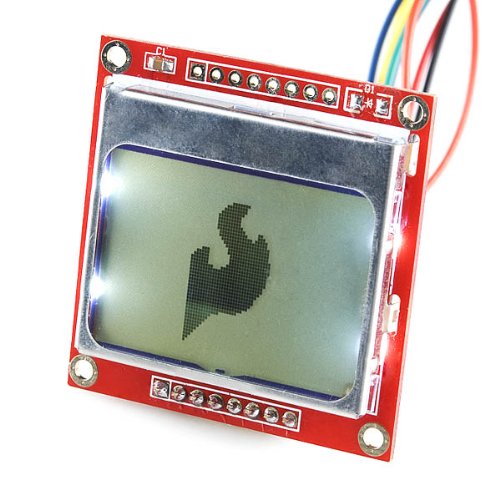

Nokia 5110 LCD Graphic Display - Arduino Compatible

Arduino FM Radio Project with TEA5767 and a Nokia 5110 LCD display ✅ - YouTube

Source: (www.youtube.com) educ8s.tv

In this Arduino project video, we are going to build a simple FM Radio using the TEA5767 module with a Nokia LCD display. Let's get started! In this video, w...
